Rent a Folsom
Image Pro HD
Los
Angeles Area, San Francisco Area, San Diego Area, Fresno
Area, Las Vegas, |
|
|
|
|

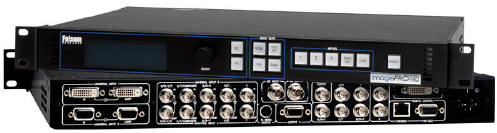

The Image
Pro HD is a Powerful all-in-one signal processor that
accept a wide range of video
input signals and process them into a number of
different signal formats. |
|
Order,
email or
Call 503-477-8972
|
System Description
Incorporating Folsom's Athena proprietary
high performance image processing technology, the ImagePRO
is available in three models; ImagePRO, ImagePRO-SDI and
our fully loaded model ImagePRO-HD.
All units are high performance video scalers, scan
converters, switchers and transcoders in one. The ImagePRO
is the ideal solution for converting RGB, HDTV, component,
s-video, composite (NTSC, PAL and SECAM), DVI, SDI and
HD/SDI into a user-selectable video format. ImagePRO
supports a wide variety of analog and digital output
formats including broadcast and VESA standards along with
many native plasma formats. ImagePRO users may also create
custom output formats to support unique display
requirements.
The ImagePRO line has an advanced feature set that
includes: universal inputs, aspect ratio conversion,
memory presets, test patterns, vertical lock (Genlock),
picture adjustments, motion adaptive de-interlacing, and
3:2 and 2:2 pulldown detection to name a few.
Features
Utilizes Athena™, Folsom's new proprietary high
performance image processing technology.
Three universal inputs accept RGBHV/RGBS/RGsB computer
video, component video (SD or HDTV), s-video, or
composite video with loop-through
Four video outputs; (2) RGB or component video, (1)
composite video, and (1) s-video
User-defined aspect ratio conversion and adjustments
Pan and zoom
Freeze
10-Bit processing
Motion Adaptive and Field to Frame de-interlacing
modes
3:2 pulldown detection for NTSC and 2:2 film detection
for PAL video sources
Decodes NTSC, PAL, and SECAM
Ethernet for real-time control
Encodes NTSC and PAL
Genlock, H/V Lock and VLock
Executive mode: protects system configuration settings
during use
64 independent memory presets
Specs
Video Input Inputs: (3) on ImagePRO,
(4) on ImagePRO with SDI and ImagePRO-HD
Universal Inputs
(3) high bandwidth video channels support RGBHV/RGBS/RGsB
computer video, component video (SD or HDTV), S-video,
or Composite video
Connectors: Input 1 and 2 on 15-pin HD connectors with
buffered loop-through. Input 3 on five BNC connectors
with buffered loopthrough
Digital Video Input:
(1) SDI input on ImagePRO-SDI model, or SDI/HDSDI
input on ImagePRO-HD
Connectors: BNC
Digital Video (DVI) Input:
(1) Input 1 on DVI-I connector supports both universal
analog and DVI input with loop-through
Input Resolution Range: VGA (640x480), SVGA(800x600),
XGA(1024x768), SXGA(1280x1024), UXGA(1600x1200), HDTV
480p, 720p, 1080p, 1080i, 875 RS-343, 525 RS-170
Standard Resolution Video Input: NTSC, PAL or SECAM
Horizontal Frequency: 15 kHz to 120 kHz
Vertical Frequency: 25 Hz to 120 Hz
Input Termination: 75 Ohm
Input Sync: Sync-on-Video, Separate C or H/V
External Sync: (Genlock) Input: Blackburst, Computer
H/V Sync or C-sync.
Connectors: BNC
Video Output Outputs: (4) on ImagePRO, (5) on ImagePRO-SDI,
(6) on ImagePRO-HD
Connectors:
RGB or component video (SD or HDTV) on HD-15
RGB or component video (SD or HDTV) or composite video
on five BNC
Composite video on BNC
S-video on 4-pin mini-DIN connector
SDI on BNC, ImagePRO with SDI and ImagePRO-HD models
only, or SDI/HDSDI on ImagePRO-HD
DVI output on DVI-D connector on ImagePRO-HD model
only
Standard resolution video output: NTSC, PAL
High resolution output supported: VGA (640x480),
SVGA(800x600), XGA(1024x768),
SXGA(1280x1024),UXGA(1600x1200). For Plasma Displays
1280x768, 1365x768, 1365x1024. HDTV 480p, 720p, 1080p,
1080i. 875 RS-343, 525 RS-170. User definable video
output formats supported
Sync: RGBHV, RGBS, RGsB, TTL level, Polarity
selectable, HDTV. Tri-level Sync supported. 75 ohm
Output Impedance.
Remote Control Ethernet connection (with TCP/IP) or
RS-232 serial port for real-time control.
Physical Height: 1.5"
Width: 17" (43.2 cm) or 19" (48.3 cm) with rackmount
option
Depth: 13"
Weight: 9lbs.
Shipping Weight: 13 lbs.
Input Power 100-240 VAC, 47-63 Hz
|
|
|
|
|
|
|
