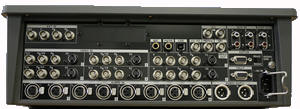

Panasonic MX70
Video Mixer |
|
|
|
|
|
|
The Panasonic AG-MX70 combines an eight input
video switcher, a multi-function digital video effects
unit and an audio mixer into a single compact unit. With
broadcast grade 4:2:2:4 digital component picture
quality and more than 600 effect patterns and other
professional features like logo animation, the
AG-MX70 offers high-end performance in a digital
post-production environment. The eight video inputs and
tally outputs for up to eight cameras also make the
AG-MX70 an ideal switcher for multi-camera live
studio and event applications.
Order,
email or
Call 503-477-8972
Key Features
|
• |
Advanced Studio and Post-Production Features
|
|
|
Designed for live camera production with genlock
capable cameras, the AG-MX70 features tally outputs
for up to eight cameras. (Genlocked signals can be
mixed with other signals, allowing dissolves wipes,
and other transition effects.)
Two-channel frame synchronization permits special
effects in each of the two program busses. The
AG-MX70 provides broadcast quality 4:2:2:4 digital
component picture quality and wipe patterns that
accommodate 16:9 and 4:3 aspect ratio production
needs as well as a 30-frame graphics buffer for
roll, crawl and logo animation. And the USB
interface makes it easy to import graphic files.
The AG-MX70 also features digital chrominance and
luminance keys, Mix Effects (M/E) preview, Down
Stream Keyer (DSK) preview, Event Memory for storing
favorite effects, a numeric keyboard for setting
pattern numbers and other values and built-in color
bars. |
| • |
Convenient Operation
|
|
|
The large LCD control panel makes for quick, easy
operation and monitoring of system status. A
five-row matrix menu display with five rotary
switches makes it easy to set the unit's multitude
of functions. The LCD panel also displays audio
level meters.
An easy-to-operate joystick allows users to
intuitively position and size effects as well as
select and adjust colors or perform color
correction. |
| • |
Digital Effects
|
|
|
The AG-MX70 can create more than 600 two-dimensional
effects and transitions like key patterns, mosaics,
paints, melts, trails and multi-images. Adding the
optional AG-VE70P 3-D effects board delivers over
1600 three-dimensional effects, including
page-turns, accordions, spheres and ripples. 2-D and
3-D effects can also be combined to create
sophisticated image expressions. |
| • |
Audio Mixing
|
|
|
The AG-MX70 provides versatile audio mixing with
four stereo inputs (or embedded digital audio with
the optional AG-YA70 SDI Board), plus two mono
auxiliary inputs, one of which can be switched to a
microphone level input. It has a 3-band equalizer on
the audio inputs and a pitch change function for
masking voice recognition, as well as four levels of
audio adjustment from any of the four sources. |
| • |
Flexible Configuration
|
|
|
Standard RS-422 (9pin) and RS-232 (25 pin) remote
terminals and a GPI (General Purpose Interface)
terminal allow the AG-MX70 to be integrated with an
editing controller. (Full serial control of the
AG-MX70 is possible with the Panasonic AG-A850
editing controller as well as the Sony BVE-2000,
BVE-910, BVE-700 and PVE-500 models.)
Eight analog composite video inputs and four
analog component inputs are standard on the AG-MX70.
(Adding the optional AG-YA70 SDI Board gives the
AG-MX70 a four-input, one-output serial digital
component interface.) This is ideal for configuring
an editing system with DVCPRO or other digital VTRs.
A PC with the MX-Navi program can also be connected
through the USB port. MX-Navi allows graphics files
created with other applications to be downloaded
into the AG-MX70. The AG-MX70 operates in both PAL
and NTSC standard and supports true 16:9 aspect
ratio production. |
.
Video
|
Format: PAL 625/NTSC 525 (switchable)
Sampling Frequency: Y:13.5 MHz, Pb/Pr: 6.75
MHz, Key: 13.5 MHz (4:2:2:4)
Signal/NoiseRatio: 56 dB (Component), 50 dB
(Composite or YC)
Quantization: 9bit (video sources), 8bit
(external key and internal process), 10bit (D/A) |
|
|
Audio
|
Sampling Frequency: 48 kHz
Quantization: 20bit
Frequency Response: 20 Hz-20 kHz (+/- 1.0 dB)
Dynamic Range: More than 85 dB
Headroom: 20 dB/18 dB (switchable) |
|
|
Input and Output Connectors
|
Video In
Analog Component: x4 BNC
Analog Composite: x8 BNC
S-Video: x4
External Key: x1 BNC
External Fill: x1 (BNC
Genlock: x1 BNC
Video Out
Analog Component: x2 BNC
Analog Composite: x2 BNC
S-Video: x2
Auxiliary: x1 BNC
Advanced Reference: x1 BNC
Audio In
Analog (L/R): x8 XLR, x4 RCA
Microphone: x1 M6
Audio Out
Analog (L/R): x2 XLR, x2 RCA
Headphone: x1 M6
Editor: D-sub 9 pin, RS-422/RS-232 switchable
Tally Out: D-sub 9 pin, Open-Collector x8ch
GPI: x1 BNC
USB: x1 Type-B (USB version 1.1) |
|
|
Power Requirements
|
120 V AC, 50-60 Hz |
|
|
Power Consumption
|
50 W (Standard), 70 W (With
Options) |
|
|
Dimensions
|
16 3/4 x 7 13/16 x 15 3/4" (425 x
198 x 400 mm) |
|
|
Weight
|
Standard: 16.5 lbs (7.5
kg)
With Options: 17.6 lbs (8.0 kg) |
|
|
|
|
|
NEC
Resolution 1365x768
Aspect Ratio 16:9
Colors 68.7 billion colors
Dimensions 48.1in W 29in H 3.8in D |
50 Inch Pioneer or NEC
Plasma Displays
Take the next step,
rent a bigger display for your next event. This display
can be viewed from center isle at trade shows. This larger
size offers integrators and designers versatile installation
options to suit virtually any application. Compare to the previous
model, this model now produces 17% less heat and has an advanced
environmental tolerance device which simultaneously reduces
operating noise at 23%. The unit, although 50 diagonal inches, is
surprisingly light weight and is one of the slimmest available on
the market. With the 160 degree viewing angle, both vertically and
horizontally, this plasma panel can be viewed from almost
anywhere, even across the isles. Users can change aspect ratios
from standard 4:3 to widescreen 16:9 format to accommodate DVD
presentations and widescreen broadcasts. Screen Size 50-inch
diagonal
Dimensions 48.1in W 29in H
3.8in D
Plasma Mfg. Information |
|
|
|
|
|
|
|
 |
42 Inch
NEC With 1024 x 768 XGA
resolution, Advanced AccuBlend Technology and a 3-2 pull down
converter ensure the best possible brightness, contrast, color and
image quality from any source. Realistic color reproduction via
NEC's exclusive Capsulated Color Filter Technology is now enhanced
by AccuCrimson, a filtration technology that produces the purest
shade of red yet possible in a plasma display. VGA to UXGA in both
16:9 and 4:3 aspect ratios
Dimensions 40.1"x 24"x3.5" |
|
|
|
|
|
|
|
 |
Hitachi
37 Inch Plasma Display
High-Resolution XGA: At 1024 x 768 pixels, XGA provides pictures
nearly one and a half times as detailed as conventional VGA
images. When viewed on the 's big 37" screen with .735 x .735 mm
pixel pitch, the vivid, super-sharp XGA picture is simply
breathtaking. Plus the is compatible with virtually any video or
data source from PCs to DVDs, making it the ideal display solution
for any corporate application from tradeshows and exhibits to
presentations and training. Plasma
Mfg. Information Model: CMP307XU
Display: 37",Resolution: 1024 x 768, true
Aspect Ratio: 4:3
Screen Size: 22.2 x 29.6, Dimensions: 34.8 x 26.9 x 3.9 |
|
|
|
|
|
|
|
Cobra Plasma
Stand
 |
To the right, our standard dual post floor stand designed to
be used with any of our flat or tilting PDM series plasma
wall mounts in the horizontal or vertical display mode. The dual
2" chrome posts allow for height adjustability with
(average is 5.5 ft. in height. Optional flat accessory shelf
installed above or below the display in a front or rear-facing
mode.
To the left, our fancy cobra display with shelf.
|
Dual pole Plasma
Stand |
|
|
|
|
|
|
|
 |
NEC LCD3000
LCD TV
- 1280 x 768 resolution allows for
crisp text and precise images
- Virtually eliminates the
potential for permanent image burn-in, contributing to optimal
screen performance and longer monitor life
- XtraView® technology allows for
wide-angle viewing
- PC and video
- Detachable speakers deliver an
enhanced multimedia experience with amazing sound quality
- On Screen Manager (OSM®) puts
you in complete control of display setting adjustments
|
|
|
|
|
|
|
|
 |
The
Great Technology War: LCD vs. DLP If you are new to
the world of digital projectors, you won't have to shop around the
market very long before discovering that "LCD" and "DLP" somehow
refers to two different kinds of projectors. You might not even
know what LCD and DLP are before asking the obvious question
"which one is better?"
Want a really BIG SCREEN...then use a LCD/DLP projector and
connect your computer or even an VHS player/recorder (used as a TV
tuner) and project pictures or presentations up to 15 feet by 20
feet. (can go larger)
Projector Models for rent. |
|
|
|
|
|
